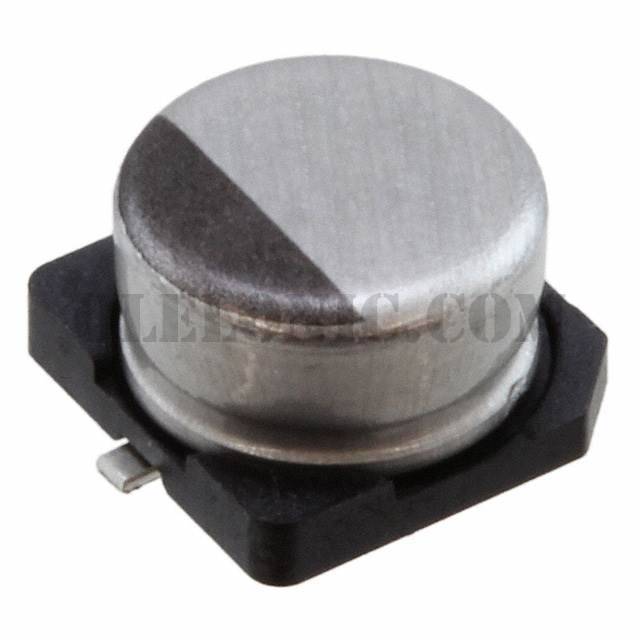

UZD1E5R6MCL1GB

Part NumberUZD1E5R6MCL1GB

ManufacturerNichicon

DescriptionCAP ALUM 5.6UF 20% 25V SMD

DatasheetZD Series

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.6µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C

To learn about the specification of UZD1E5R6MCL1GB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UZD1E5R6MCL1GB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UZD1E5R6MCL1GB.
We are offering UZD1E5R6MCL1GB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UZD1E5R6MCL1GB - Product Attributes

Categories

Capacitors / Aluminum Electrolytic Capacitors

Datasheet

ZD Series

Standard Package

1000

Manufacturer

Nichicon

Series

UZD

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Capacitance

5.6µF

Tolerance

±20%

Voltage - Rated

25V

ESR (Equivalent Series Resistance)

Lifetime @ Temp.

1000 Hrs @ 85°C

Operating Temperature

-40°C ~ 85°C

Polarization

Ratings

Applications

General Purpose

Ripple Current @ Low Frequency

18mA @ 120Hz

Ripple Current @ High Frequency

27mA @ 10kHz

Lead Spacing

Size / Dimension

0.197" Dia (5.00mm)

Height - Seated (Max)

0.126" (3.20mm)

Surface Mount Land Size

0.209" L x 0.209" W (5.30mm x 5.30mm)

Mounting Type

Surface Mount

Package / Case

Radial, Can - SMD
