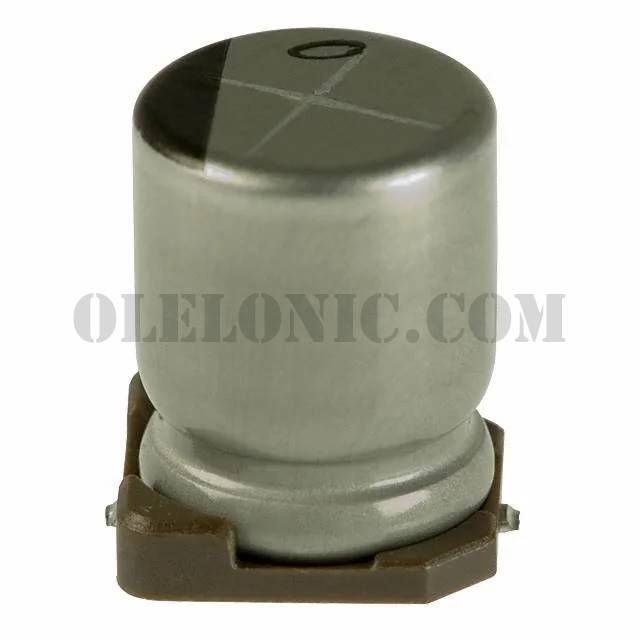

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWT Series
Standard Package	500
Manufacturer	Nichicon
Series	UWT
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	190mA @ 120Hz
Ripple Current @ High Frequency	285mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWT0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1V3R3MCL2GB	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J221MCL1GB	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1C220MCL1GB	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J152MNL1GS	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J330MCL1GB	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1E331MNL1GS	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1E101MCL1GS	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1V4R7MCL1GB	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1A331MNL1GS	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1C100MCL2GB	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1H100MCL1GB	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View

UWT1E331MNL1GS

Part NumberUWT1E331MNL1GS
