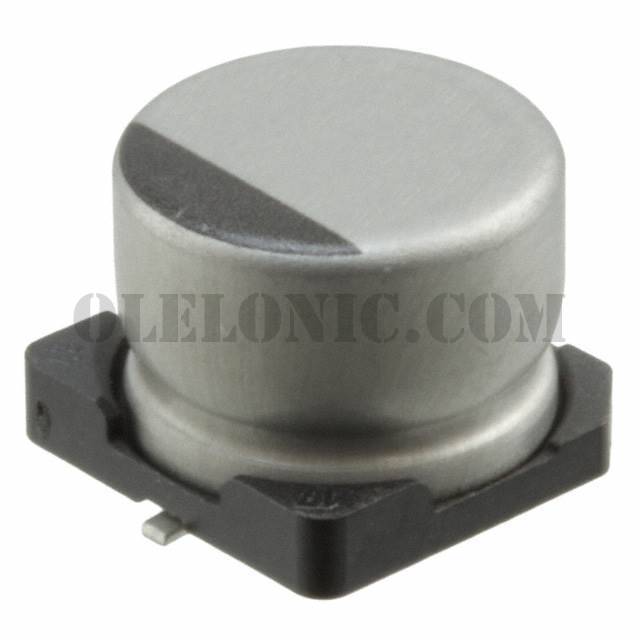

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWG Series
Standard Package	1
Manufacturer	Nichicon
Series	UWG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	115mA @ 120Hz
Ripple Current @ High Frequency	230mA @ 100kHz
Impedance	400 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWG0J220MCL1GB	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1A102MNL1GS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1C331MNL1GS	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1C331MNL1GS	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1H4R7MCL1GB	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1V2R2MCL1GB	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1A151MCL1GS	Nichicon, 150µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1H220MCL1GS	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1A101MCL1GS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG0J470MCL1GB	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View

UWG0J221MCL1GS

Part NumberUWG0J221MCL1GS
