Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWD Series
Standard Package	1
Manufacturer	Nichicon
Series	UWD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	115mA @ 120Hz
Ripple Current @ High Frequency	230mA @ 100kHz
Impedance	440 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount

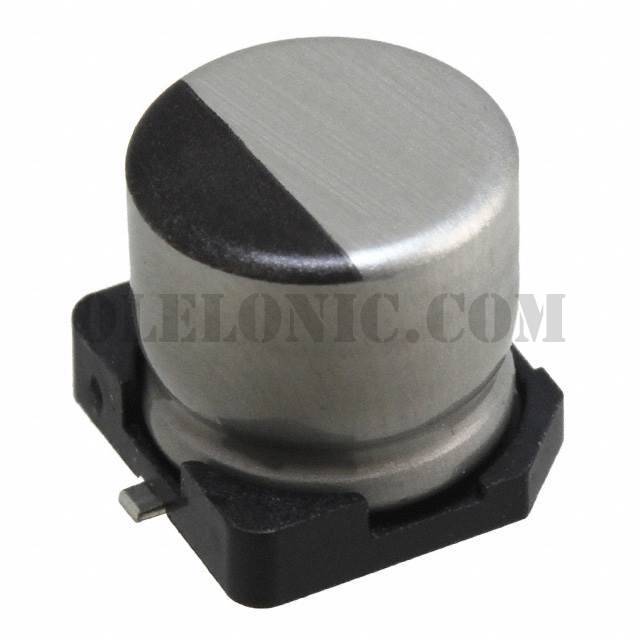

Package / Case	Radial, Can - SMD
