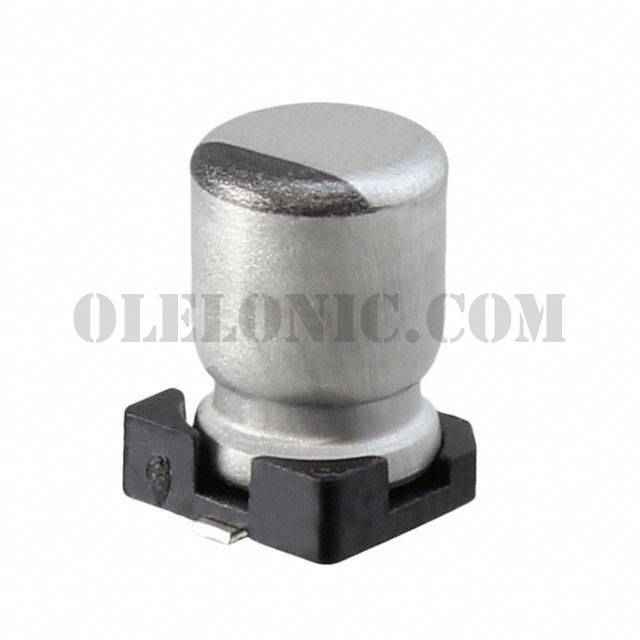

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWD Series
Standard Package	1
Manufacturer	Nichicon
Series	UWD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	15µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	40mA @ 120Hz
Impedance	1.8 Ohms
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWD1C270MCL1GS	Nichicon, 27µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD0J560MCL1GS	Nichicon, 56µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1V151MCL1GS	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1A560MCL1GS	Nichicon, 56µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H470MCL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H680MCL1GS	Nichicon, 68µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1V100MCL1GS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1C331MCL1GS	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1H4R7MCL1GS	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1E680MCL1GS	Nichicon, 68µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A681MCL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1V330MCL1GS	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View

UWD1C150MCL1GS

Part NumberUWD1C150MCL1GS
