Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVZ Series
Standard Package	1
Manufacturer	Nichicon
Series	UVZ
Packaging	Cut Tape (CT)
Part Status	Active

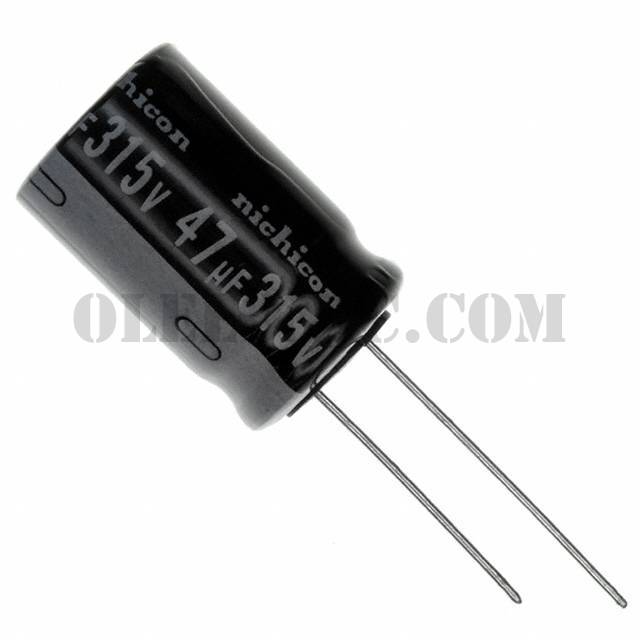

Capacitance	47µF
Tolerance	±20%
Voltage - Rated	315V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	230mA @ 120Hz
Ripple Current @ High Frequency	368mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
