Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVZ Series
Standard Package	250
Manufacturer	Nichicon
Series	UVZ
Packaging	Tape & Box (TB)
Part Status	Active

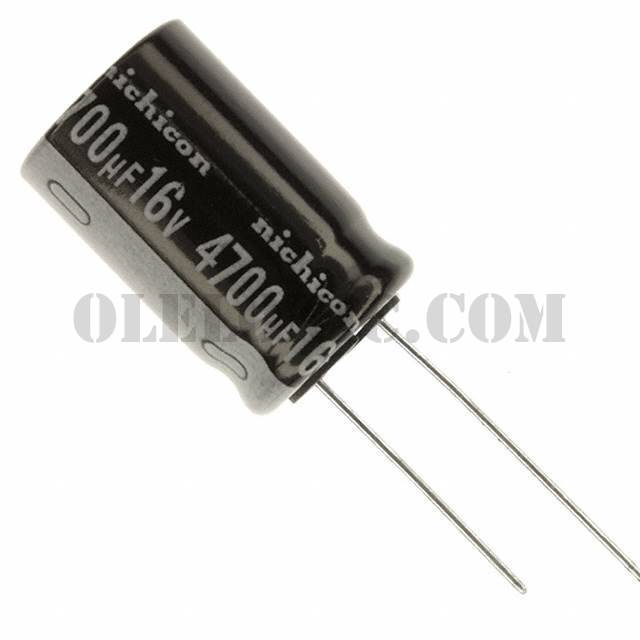

Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.48A @ 120Hz
Ripple Current @ High Frequency	1.702A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVZ2C4R7MED1TD	Nichicon, 4.7µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2D3R3MED1TD	Nichicon, 3.3µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1C221MED1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1A221MED1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2C4R7MED1TD	Nichicon, 4.7µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1J220MDD1TD	Nichicon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2E3R3MPD1TA	Nichicon, 3.3µF 250V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1E470MDD1TD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1A470MDD1TD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2A101MPD1TD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2V2R2MPD1TD	Nichicon, 2.2µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1V470MDD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View

UVZ1C472MHD1TN

Part NumberUVZ1C472MHD1TN
