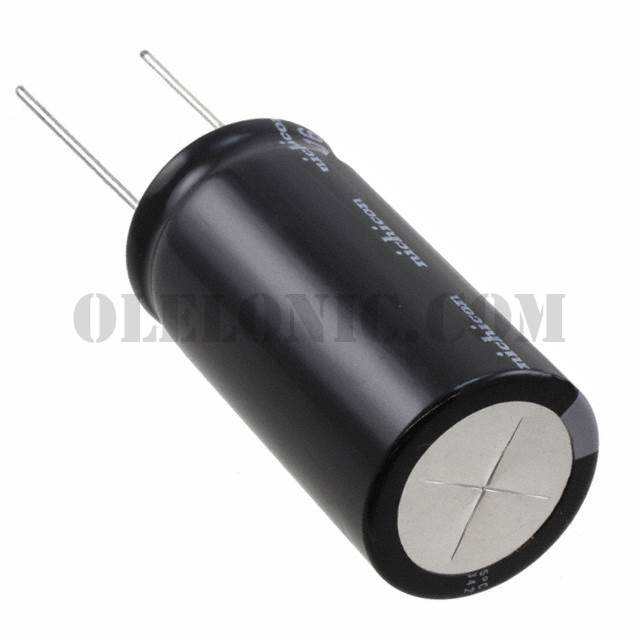

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVY Series
Standard Package	140
Manufacturer	Nichicon
Series	UVY
Packaging	Bulk
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.85A @ 120Hz
Ripple Current @ High Frequency	3.2775A @ 10kHz
Lead Spacing	0.492" (12.50mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVY2A330MPD1TD	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1A472MHD1TO	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2W220MHD1TO	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2G470MHD1TN	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A101MPD1TD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2DR22MED1TD	Nichicon, 0.22µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1A223MHD	Nichicon, 22000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2D4R7MED1TD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1J470MED1TD	Nichicon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2W4R7MPD	Nichicon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1C682MHD1TN	Nichicon, 6800µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1J472MRD	Nichicon, 4700µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View

UVY1H103MRD

Part NumberUVY1H103MRD
