Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVY Series
Standard Package	2000
Manufacturer	Nichicon
Series	UVY
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	125mA @ 120Hz
Ripple Current @ High Frequency	187.5mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVY0J222MPD1TD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1C333MRD	Nichicon, 33000µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2G3R3MPD	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A331MHD1TO	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1A472MHD1TO	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2C100MPD1TD	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1A222MPD1TD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2W2R2MPD	Nichicon, 2.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY0J153MHD	Nichicon, 15000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY0J472MHD1TO	Nichicon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View

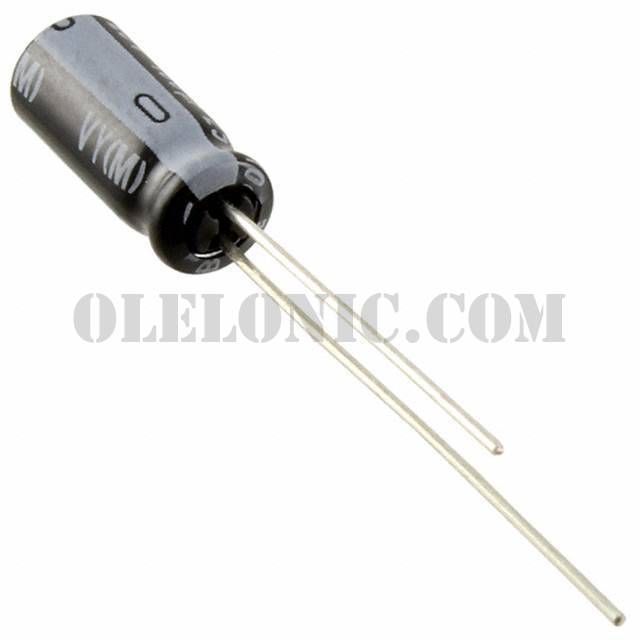

UVY1E101MDD1TA

Part NumberUVY1E101MDD1TA
