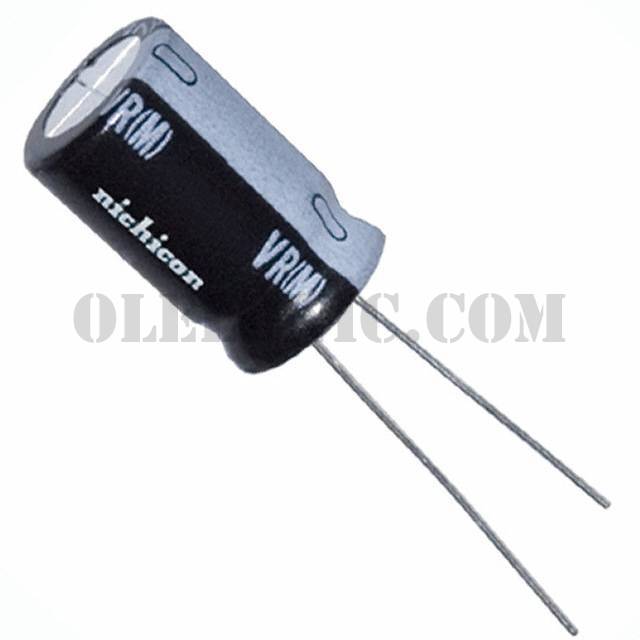

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVR Series
Standard Package	500
Manufacturer	Nichicon
Series	UVR
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	130mA @ 120Hz
Ripple Current @ High Frequency	208mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVR2C4R7MED	Nichicon, 4.7µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1V330MDD1TD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2D4R7MPD1TD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1A333MRD6	Nichicon, 33000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1C153MRD6	Nichicon, 15000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2F220MHD1TO	Nichicon, 22µF 315V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2D4R7MPD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1J100MDD1TD	Nichicon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR0J471MED1TA	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2G3R3MPD1TD	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1A471MED1TA	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1A472MHD1TO	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View

UVR2G100MHD1TO

Part NumberUVR2G100MHD1TO
