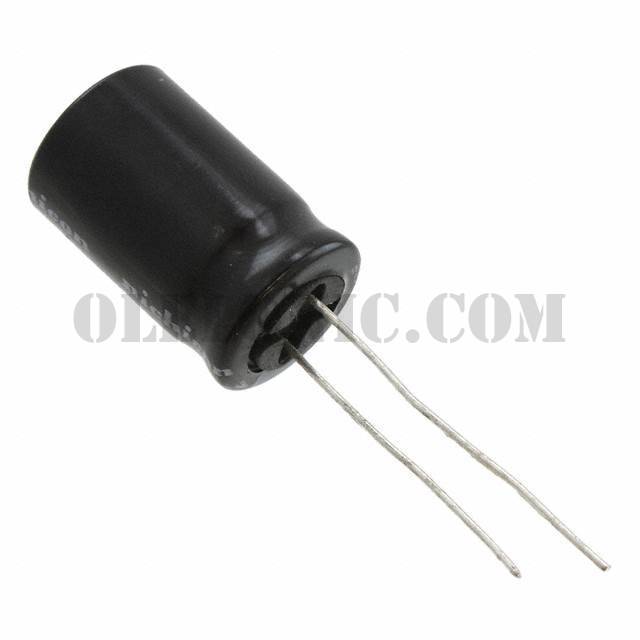

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVR Series
Standard Package	200
Manufacturer	Nichicon
Series	UVR
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	170mA @ 120Hz
Ripple Current @ High Frequency	340mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVR1H4R7MDD6TP	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2DR47MED1TD	Nichicon, 0.47µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1E220MDD	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR0J101MDD1TD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H331MPD1TD	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR0J103MHD	Nichicon, 10000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2F100MPD1TD	Nichicon, 10µF 315V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR0J332MPD1TD	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2D220MPD1TD	Nichicon, 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1E153MRD	Nichicon, 15000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2D3R3MED1TD	Nichicon, 3.3µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View

UVR1J470MED

Part NumberUVR1J470MED
