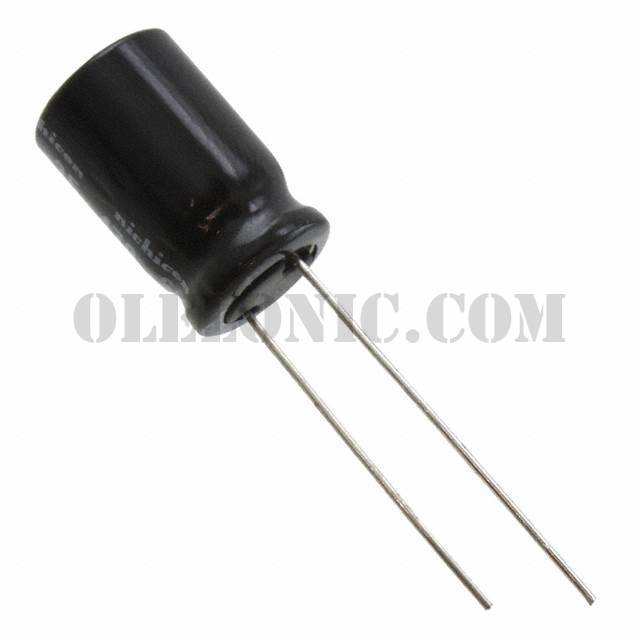

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVR Series
Standard Package	1
Manufacturer	Nichicon
Series	UVR
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
Capacitance	0.47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	6.2mA @ 120Hz
Ripple Current @ High Frequency	12.4mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVR2A220MED	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2A101MPD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1C220MDD1TD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H330MDD1TD	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2W100MHD1TO	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1V103MRD6	Nichicon, 10000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2C100MPD1TD	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H470MED1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H3R3MDD1TA	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR0J102MPD1TA	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1V100MDD6TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View

UVR1HR47MDD1TA

Part NumberUVR1HR47MDD1TA
