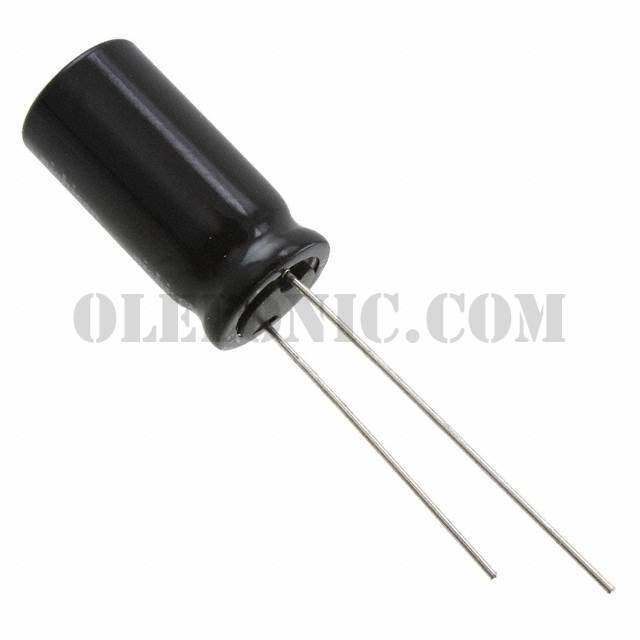

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVP Series
Standard Package	200
Manufacturer	Nichicon
Series	UVP
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	265mA @ 120Hz
Ripple Current @ High Frequency	397.5mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVP1H331MHD1TN	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1HR47MDD1TD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1E100MDD1TD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1V331MHD1TO	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1C101MPD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1C220MDD1TD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A2R2MED1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H221MHD1TO	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A220MPD1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A4R7MED1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1C101MPD1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View

UVP1H101MPD

Part NumberUVP1H101MPD
