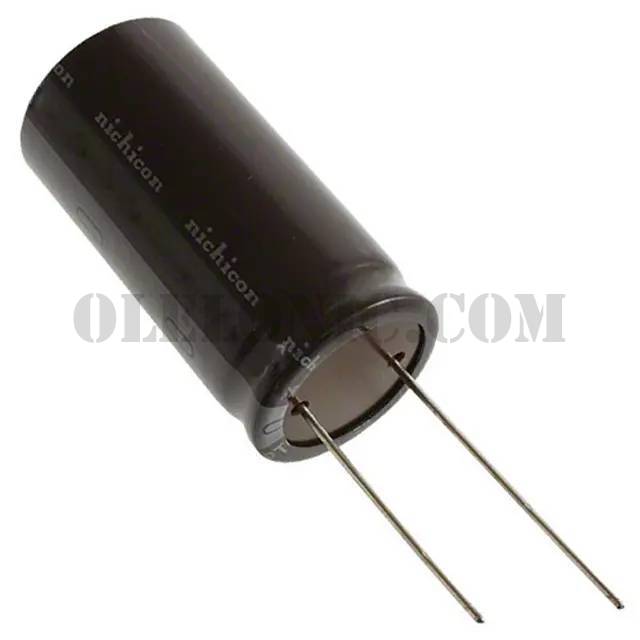

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVK Series
Standard Package	140
Manufacturer	Nichicon
Series	UVK
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1A @ 120Hz
Ripple Current @ High Frequency	1.6A @ 10kHz
Lead Spacing	0.492" (12.50mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVK2G470MHD1TN	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A331MHD1TO	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1A331MED1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A221MHD	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V330MHD1TO	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A470MPD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1E472MHD1TN	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2W470MHD	Nichicon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View

UVK2V331MRD

Part NumberUVK2V331MRD
