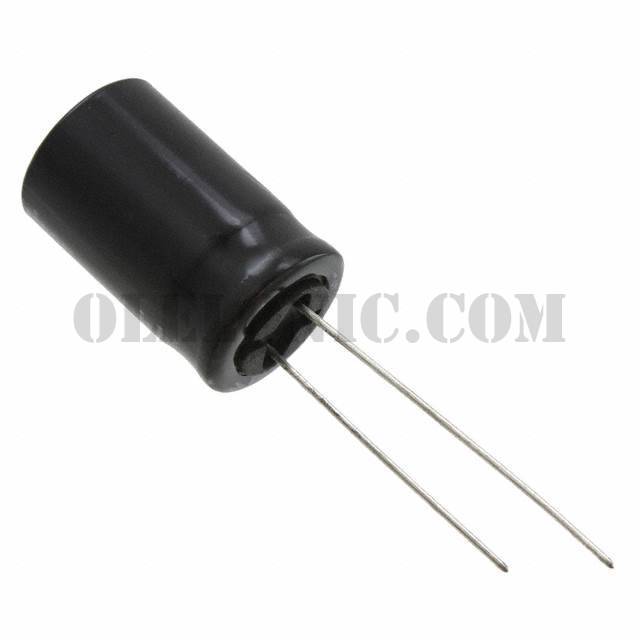

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVK Series
Standard Package	500
Manufacturer	Nichicon
Series	UVK
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	270mA @ 120Hz
Ripple Current @ High Frequency	432mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVK2C680MHD	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V470MHD	Nichicon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1V470MDD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1A221MDD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1E102MPD1TD	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2E100MPD1TD	Nichicon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1A331MED1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1J330MED1TD	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A221MHD1TO	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2G010MED1TD	Nichicon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1H102MHD1TO	Nichicon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View

UVK2E470MHD1TO

Part NumberUVK2E470MHD1TO
