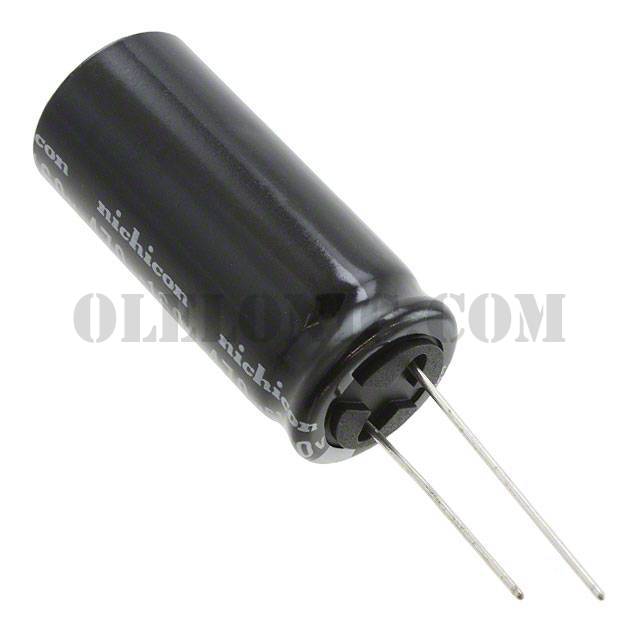

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVK Series
Standard Package	50
Manufacturer	Nichicon
Series	UVK
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.2A @ 120Hz
Ripple Current @ High Frequency	1.38A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVK2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1V471MPD1TD	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A221MHD1TO	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1J331MPD1TD	Nichicon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V3R3MPD1TD	Nichicon, 3.3µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2W220MHD1TO	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V221MRD	Nichicon, 220µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2W2R2MPD1TD	Nichicon, 2.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2C220MPD	Nichicon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V680MHD1TN	Nichicon, 68µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1E472MHD	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1V472MHD	Nichicon, 4700µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View

UVK2C471MHD

Part NumberUVK2C471MHD
