Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVK Series
Standard Package	50
Manufacturer	Nichicon
Series	UVK
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.8A @ 120Hz
Ripple Current @ High Frequency	3.22A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVK1E331MPD1TA	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A471MHD1TN	Nichicon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2D680MHD1TO	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A2R2MDD1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1E472MHD1TN	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V470MHD	Nichicon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK0J102MPD1TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1E682MHD	Nichicon, 6800µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V330MHD1TO	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A010MDD1TD	Nichicon, 1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2C220MPD1TD	Nichicon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View

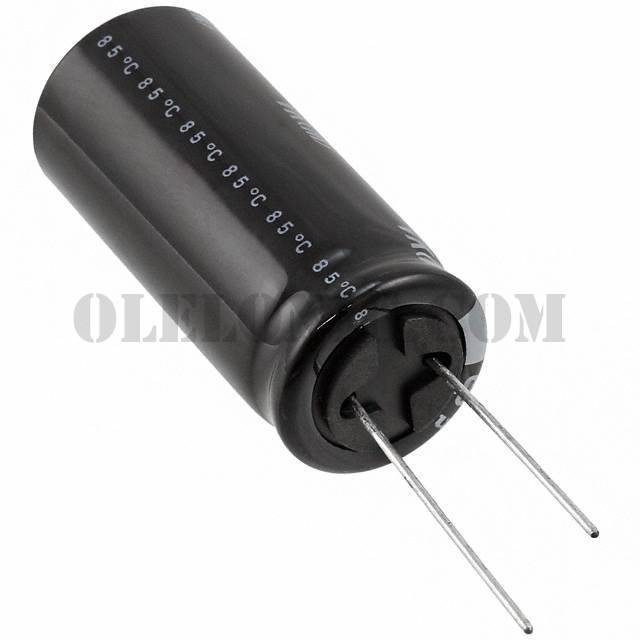

UVK1V682MHD

Part NumberUVK1V682MHD
