Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUX Series
Standard Package	1
Manufacturer	Nichicon
Series	UUX
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	42mA @ 120Hz
Ripple Current @ High Frequency	70.14mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUX2D4R7MNL1GS	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1C471MNL1GS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2E3R9MNL1GS	Nichicon, 3.9µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2E3R9MNL1GS	Nichicon, 3.9µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G010MNL1GS	Nichicon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2E6R8MNL1GS	Nichicon, 6.8µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1A471MNL6GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1C221MNL6GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1V470MNL1GS	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1C221MNL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1A471MNL6GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View

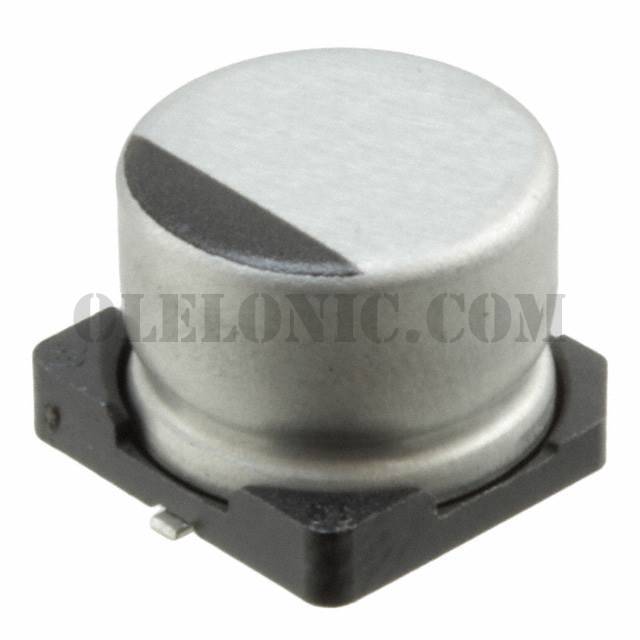

UUX2A4R7MCL1GS

Part NumberUUX2A4R7MCL1GS
