Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUQ Series
Standard Package	1000
Manufacturer	Nichicon
Series	UUQ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	23mA @ 120Hz
Ripple Current @ High Frequency	34.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount

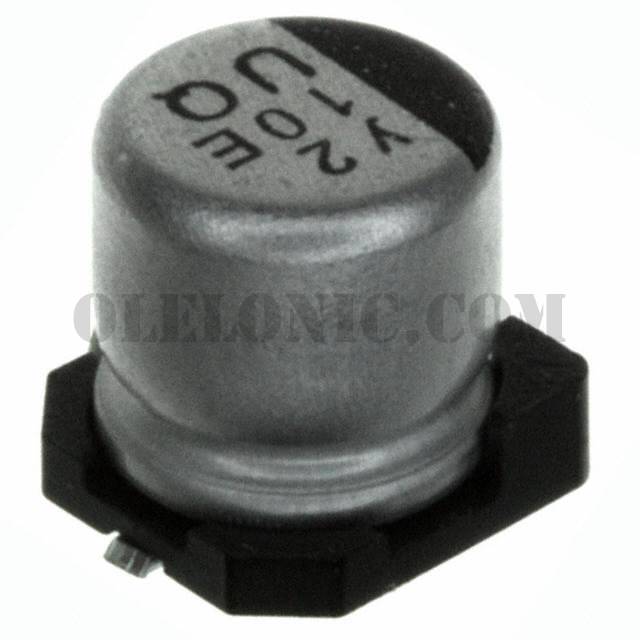

Package / Case	Radial, Can - SMD
