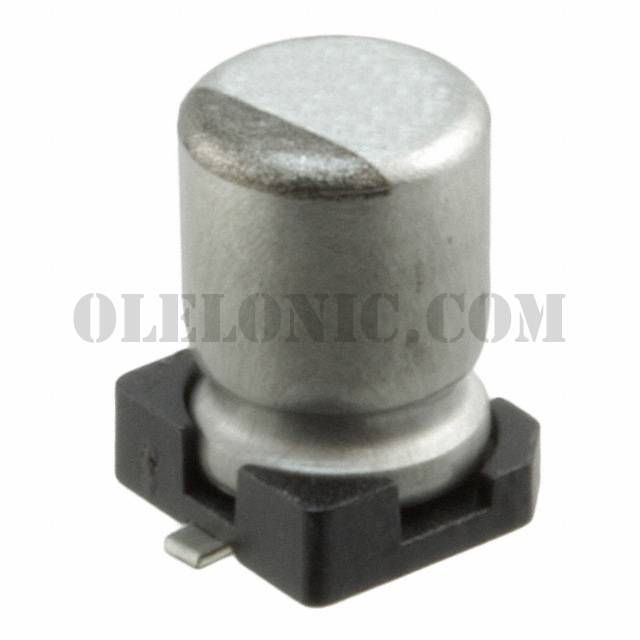

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUL Series
Standard Package	1
Manufacturer	Nichicon
Series	UUL
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	14mA @ 120Hz
Ripple Current @ High Frequency	21mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
