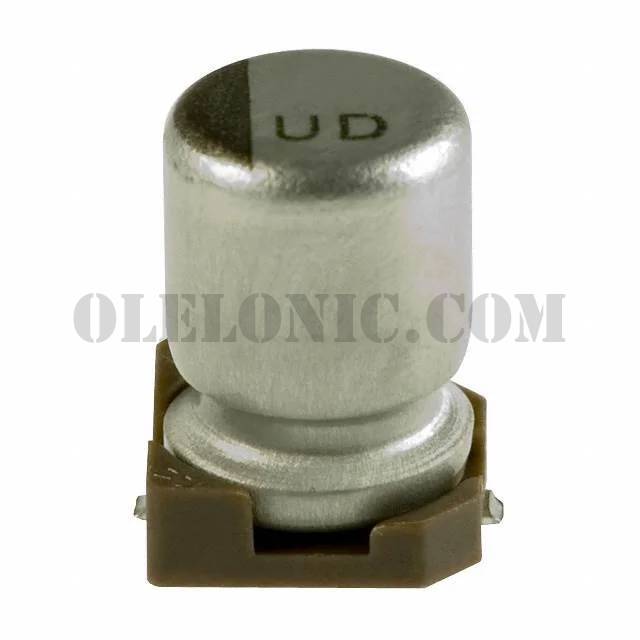

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUD Series
Standard Package	2000
Manufacturer	Nichicon
Series	UUD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	2.2µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	15mA @ 120Hz
Ripple Current @ High Frequency	30mA @ 100kHz
Impedance	5 Ohms
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
