Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UTT Series
Standard Package	1
Manufacturer	Nichicon
Series	UTT
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	29.6mA @ 120Hz
Ripple Current @ High Frequency	74mA @ 100kHz
Impedance	4 Ohms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-

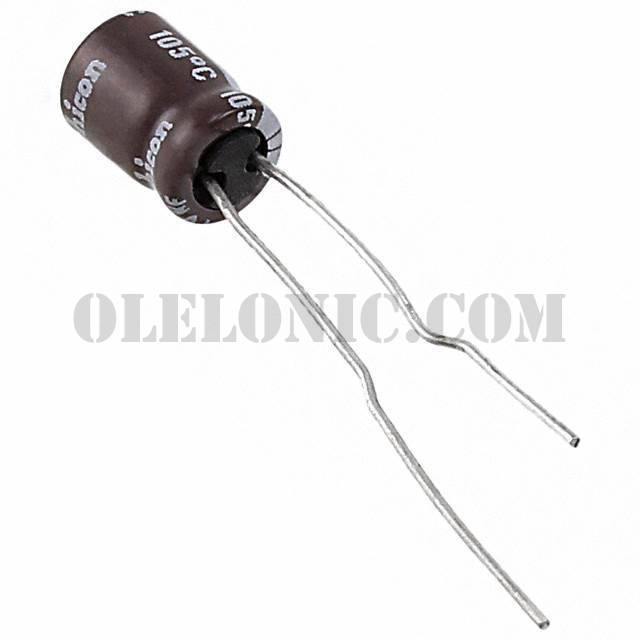

Mounting Type	Through Hole
Package / Case	Radial, Can
