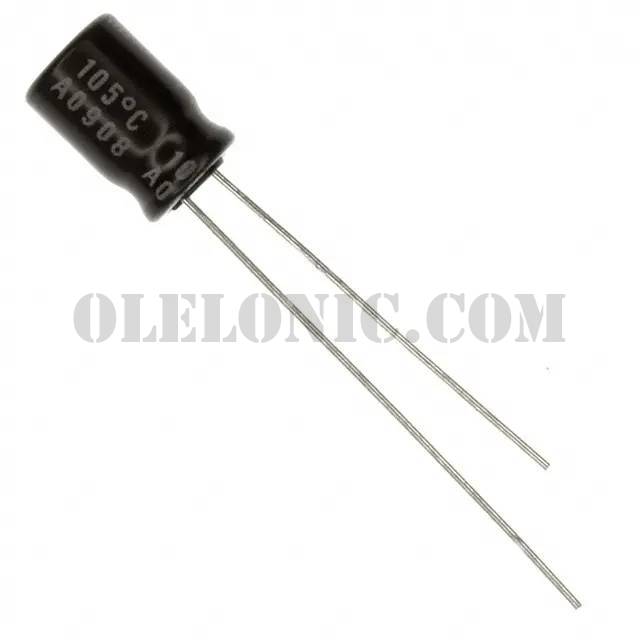

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UTT Series
Standard Package	200
Manufacturer	Nichicon
Series	UTT
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	97.8mA @ 120Hz
Ripple Current @ High Frequency	163mA @ 100kHz
Impedance	1.1 Ohms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UTT1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H3R3MDD1TP	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H100MDD1TP	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H470MPD1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C151MPD1TD	Nichicon, 150µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E470MDD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E331MPD1TD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT0J470MDD1TP	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT0J470MDD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT0J101MDD1TP	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View

UTT1C101MDD

Part NumberUTT1C101MDD
