Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UST Series
Standard Package	200
Manufacturer	Nichicon
Series	UST
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	10mA @ 120Hz
Ripple Current @ High Frequency	15mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UST1H100MDD1TP	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1C100MDD1TP	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H010MDD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1A101MDD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1A220MDD1TE	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1V100MDD1TE	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H2R2MDD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1C100MDD1TP	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H4R7MDD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1HR22MDD	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1C470MDD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST0J221MDD	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View

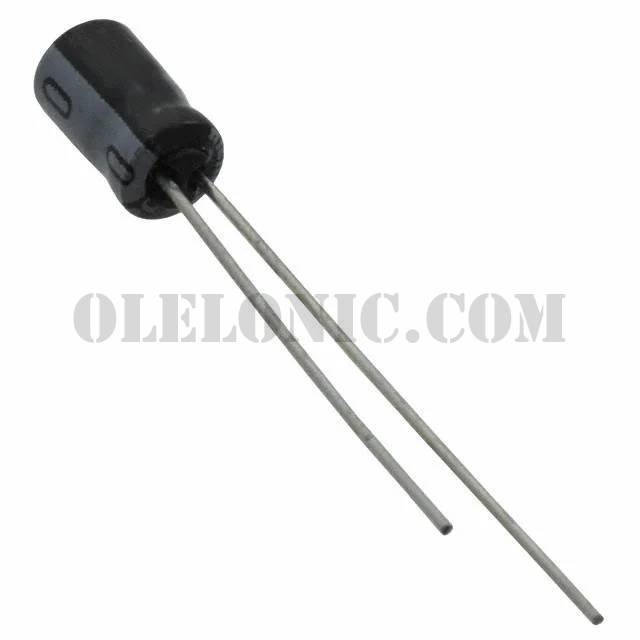

UST1H010MDD

Part NumberUST1H010MDD
