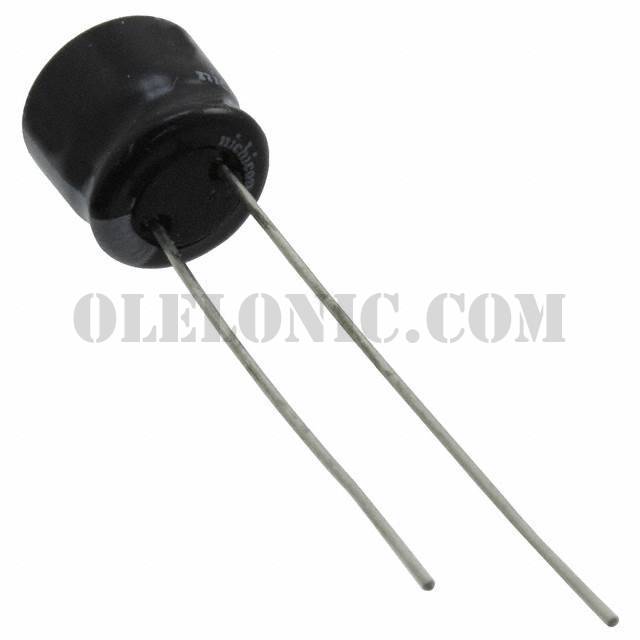

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UST Series
Standard Package	200
Manufacturer	Nichicon
Series	UST
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	96mA @ 120Hz
Ripple Current @ High Frequency	144mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UST1C100MDD1TP	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H0R1MDD	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H010MDD1TE	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1C101MDD1TA	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1E470MDD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1E100MDD1TE	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1E100MDD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H100MDD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1HR47MDD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1E100MDD1TP	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1A220MDD1TE	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View

UST1A101MDD

Part NumberUST1A101MDD
