Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USA, USR Series
Standard Package	200
Manufacturer	Nichicon
Series	USR
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	71mA @ 120Hz
Ripple Current @ High Frequency	106.5mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

USR1A470MDD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1H4R7MDD1TP	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR0G221MDD1TP	Nichicon, 220µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1V100MDD1TE	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1V470MDD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1E470MDD1TE	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1V4R7MDD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1A221MDD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1E220MDD	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1H4R7MDD	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1A101MDD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1C221MDD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View

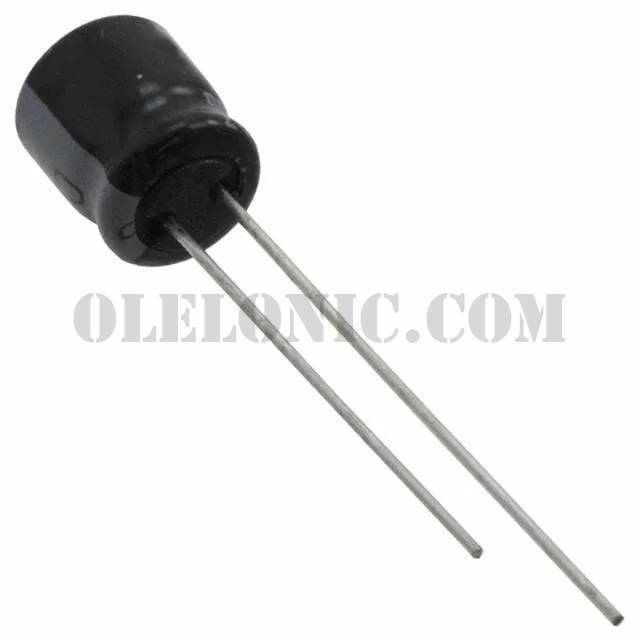

USR1E470MDD

Part NumberUSR1E470MDD
