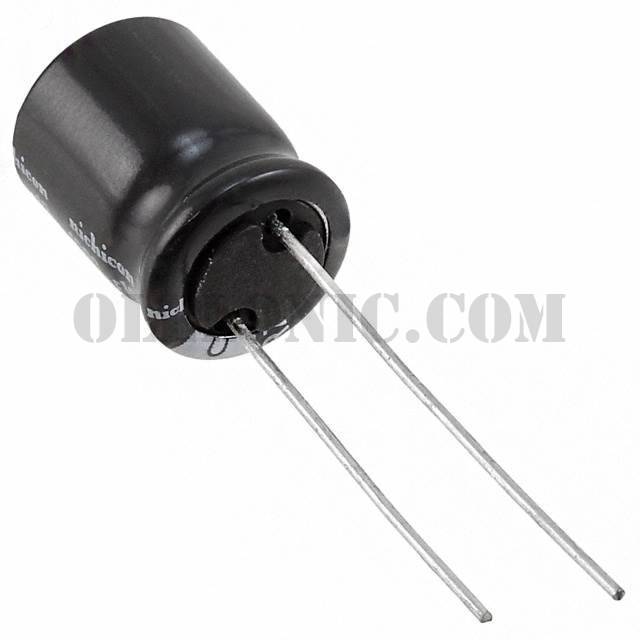

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URZ Series
Standard Package	1
Manufacturer	Nichicon
Series	URZ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	165mA @ 120Hz
Ripple Current @ High Frequency	330mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URZ2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2A331MHD1TN	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1E220MDD1TD	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ0J330MDD	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2D470MHD6TN	Nichicon, 47µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1C100MDD1TD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1E222MHD1TN	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ0J682MHD1TN	Nichicon, 6800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1H331MHD1TO	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V4R7MDD1TD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1H222MRD	Nichicon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View

URZ2A470MPD1TD

Part NumberURZ2A470MPD1TD
