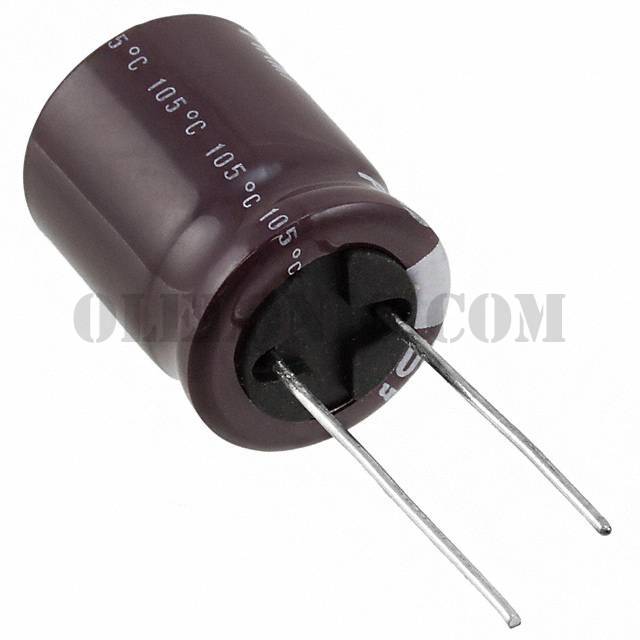

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URZ Series
Standard Package	100
Manufacturer	Nichicon
Series	URZ
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	510mA @ 120Hz
Ripple Current @ High Frequency	765mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URZ2D101MHD1TN	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V470MDD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2A101MHD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1C101MDD1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V220MDD1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1J220MDD1TD	Nichicon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2G100MHD1TN	Nichicon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2C470MHD1TN	Nichicon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2E470MHD	Nichicon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2E680MHD1TN	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ0J222MHD1TO	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View

URZ1J331MHD

Part NumberURZ1J331MHD
