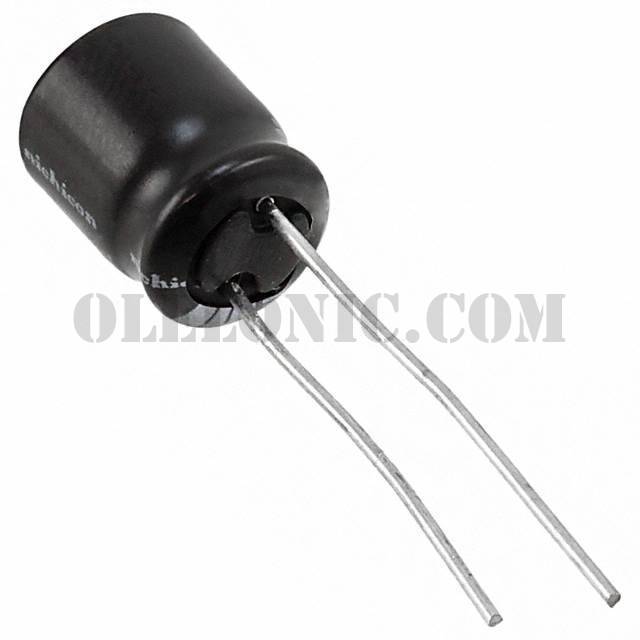

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URZ Series
Standard Package	1000
Manufacturer	Nichicon
Series	URZ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	205mA @ 120Hz
Ripple Current @ High Frequency	307.5mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URZ1H220MDD1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V101MPD1TA	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1H331MHD1TO	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1A682MHD1TN	Nichicon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1HR22MDD1TD	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1H2R2MDD1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2D330MHD1TN	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2C101MRD6	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1A101MDD1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2A220MPD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1A222MHD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View

URZ1C221MPD1TD

Part NumberURZ1C221MPD1TD
