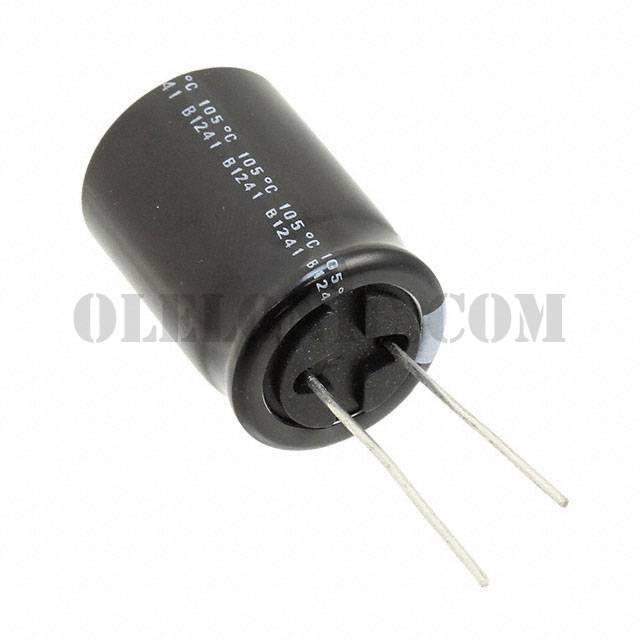

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URZ Series
Standard Package	1
Manufacturer	Nichicon
Series	URZ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.7A @ 120Hz
Ripple Current @ High Frequency	1.955A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URZ1A102MPD	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V220MDD1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2A4R7MDD1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1C330MDD1TD	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2G330MHD1TN	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1C682MHD1TN	Nichicon, 6800µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V102MHD1TN	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ0J103MHD1TN	Nichicon, 10000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2C680MHD1TN	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V222MHD1TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1C101MDD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View

URZ1A103MHD1TN

Part NumberURZ1A103MHD1TN
