Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URS Series
Standard Package	200
Manufacturer	Nichicon
Series	URS
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	480mA @ 120Hz
Ripple Current @ High Frequency	720mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URS1J100MDD1TD	Nichicon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A103MHD1TN	Nichicon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1V100MDD1TD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1HR47MDD1TD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1C221MPD1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2D330MHD1TN	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS2G330MHD1TN	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1H2R2MDD1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1A682MHD	Nichicon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1C472MHD1TN	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1E100MDD1TD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View
URS1C222MHD1TN	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, URS	View

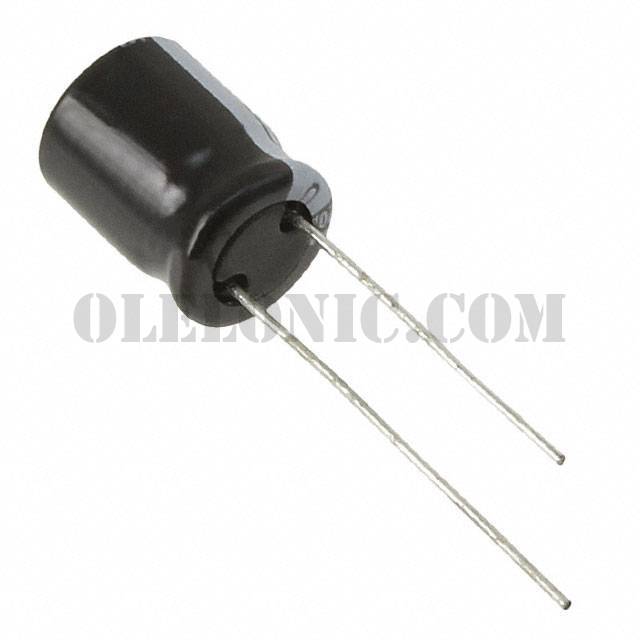

URS1V331MPD

Part NumberURS1V331MPD
