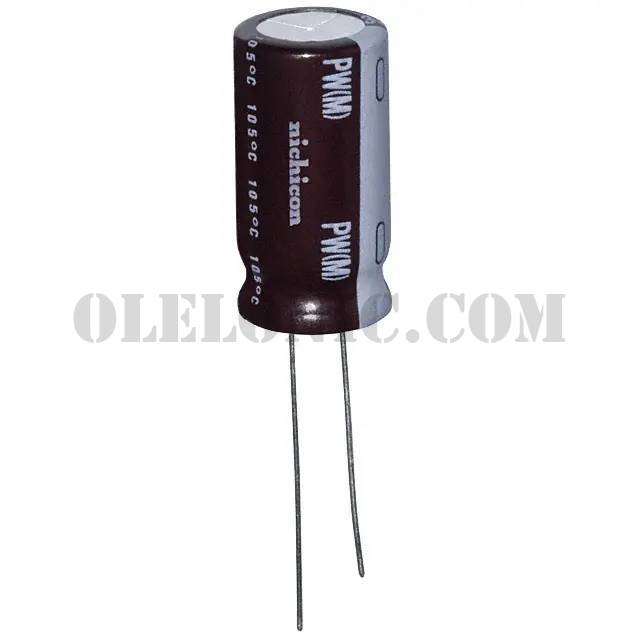

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	100
Manufacturer	Nichicon
Series	UPW
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	155mA @ 120Hz
Ripple Current @ High Frequency	248mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW1A272MHD1TO	Nichicon, 2700µF 10V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UPW	View
UPW0J562MHD6TN	Nichicon, 5600µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1E152MHD	Nichicon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW2E4R7MPD1TD	Nichicon, 4.7µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1A220MDD6TP	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1C330MDD1TD	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW0J220MDD1TD	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1A681MPD6	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1A181MED1TD	Nichicon, 180µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW0J122MPD	Nichicon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1A562MHD6TN	Nichicon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1C152MPD6	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View

UPW2E220MHD

Part NumberUPW2E220MHD
