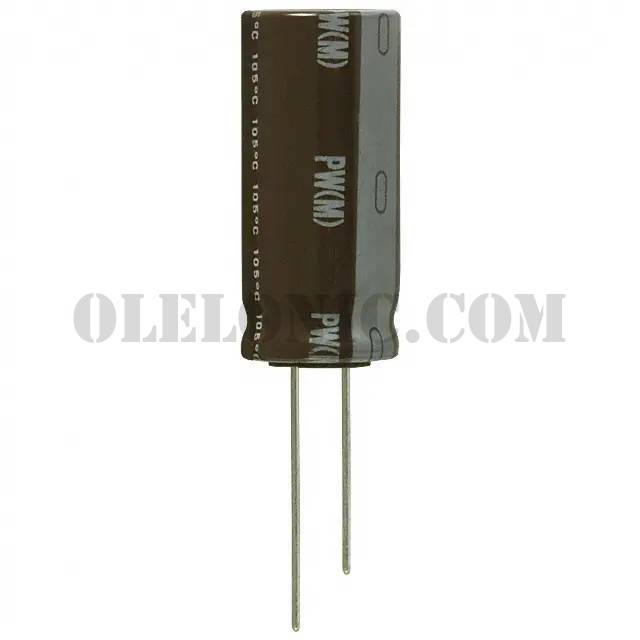

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	50
Manufacturer	Nichicon
Series	UPW
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.058A @ 120Hz
Ripple Current @ High Frequency	1.41A @ 100kHz
Impedance	64 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.398" (35.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW2C3R3MPD	Nichicon, 3.3µF 160V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1J222MHD	Nichicon, 2200µF 63V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1H221MPD6TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1H820MPD	Nichicon, 82µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW0J151MDD6TD	Nichicon, 150µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2A181MHD	Nichicon, 180µF 100V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UPW	View
UPW1C122MPD1TD	Nichicon, 1200µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1V182MHD1TN	Nichicon, 1800µF 35V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1A681MPD6TD	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW0J101MDD1TD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1E101MED1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1V122MHD	Nichicon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UPW	View

UPW2A681MHD

Part NumberUPW2A681MHD
