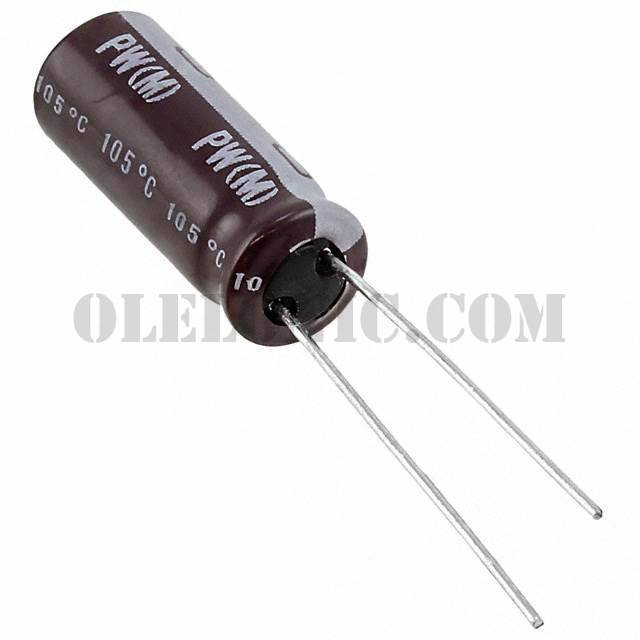

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	1000
Manufacturer	Nichicon
Series	UPW
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	126mA @ 120Hz
Ripple Current @ High Frequency	420mA @ 100kHz
Impedance	370 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW2A221MHD	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1V152MHD1TN	Nichicon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1H391MHD1TO	Nichicon, 390µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UPW	View
UPW0J122MPD	Nichicon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW2A102MHD	Nichicon, 1000µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1V330MDD1TD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1H221MPD1TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1C392MHD1TN	Nichicon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1J6R8MDD6TP	Nichicon, 6.8µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW0J680MDD1TP	Nichicon, 68µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1J102MHD6	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1V331MPD6TD	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View

UPW2A470MPD6TD

Part NumberUPW2A470MPD6TD
