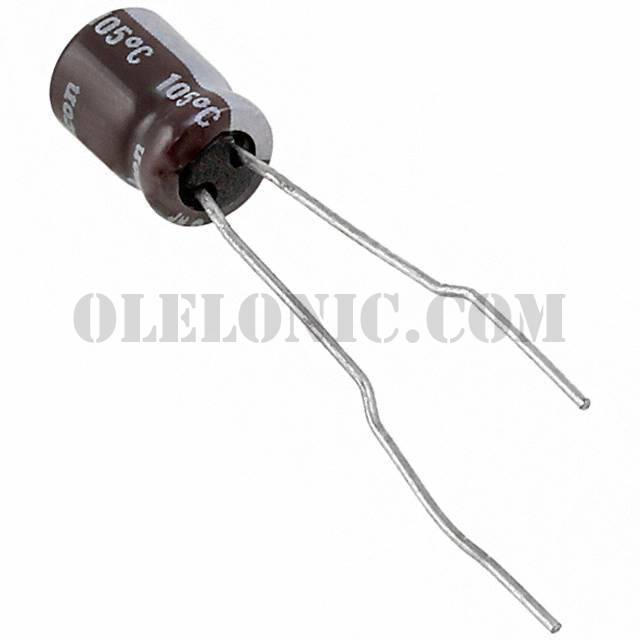

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	1
Manufacturer	Nichicon
Series	UPW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	36mA @ 120Hz
Impedance	950 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW1A562MHD6TN	Nichicon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW2E4R7MPD1TD	Nichicon, 4.7µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW0J222MHD1TO	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UPW	View
UPW1H821MHD6	Nichicon, 820µF 50V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW2F4R7MPD1TD	Nichicon, 4.7µF 315V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1H220MDD1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2C220MPD1TD	Nichicon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW2D010MED1TD	Nichicon, 1µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1H102MHD	Nichicon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW0J122MPD1TD	Nichicon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View

UPW1V100MDD6TP

Part NumberUPW1V100MDD6TP
