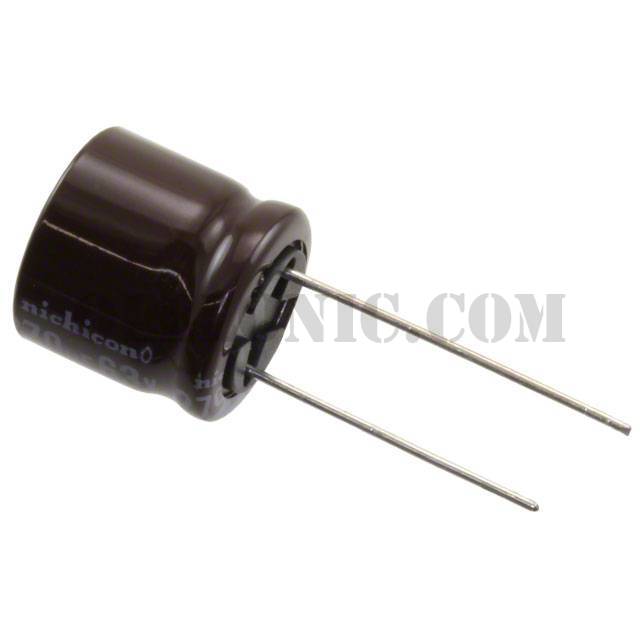

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	1
Manufacturer	Nichicon
Series	UPW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	270µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	916.5mA @ 120Hz
Ripple Current @ High Frequency	1.41A @ 100kHz
Impedance	90 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW1H121MPD6TD	Nichicon, 120µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1C681MPD1TD	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1A470MDD1TD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1H221MPD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1A332MHD1TO	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UPW	View
UPW0J122MPD6TD	Nichicon, 1200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1J122MHD	Nichicon, 1200µF 63V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1J151MPD1TD	Nichicon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW1V390MDD1TD	Nichicon, 39µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2CR47MED1TD	Nichicon, 0.47µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1C272MHD6	Nichicon, 2700µF 16V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1C181MED1TD	Nichicon, 180µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View

UPW1J271MHD1TN

Part NumberUPW1J271MHD1TN
