Categories	Capacitors / Aluminum Electrolytic Capacitors

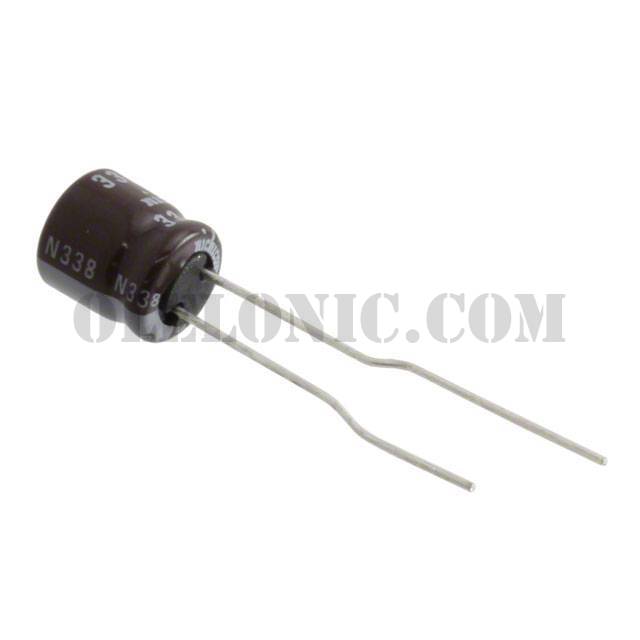

Datasheet	UPW Series
Standard Package	2000
Manufacturer	Nichicon
Series	UPW
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	60mA @ 120Hz
Ripple Current @ High Frequency	200mA @ 100kHz
Impedance	450 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPW1C150MDD1TP	Nichicon, 15µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2A330MPD6TD	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1V222MHD6TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1E101MED1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW2VR47MPD1TD	Nichicon, 0.47µF 350V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPW	View
UPW1A101MDD6TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1J330MED1TD	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPW	View
UPW1J221MPD1TD	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW0J222MPD6TD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View
UPW2A221MHD6	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW1V152MHD	Nichicon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UPW	View
UPW2V3R3MPD1TD	Nichicon, 3.3µF 350V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPW	View

UPW1C560MDD6TP

Part NumberUPW1C560MDD6TP
