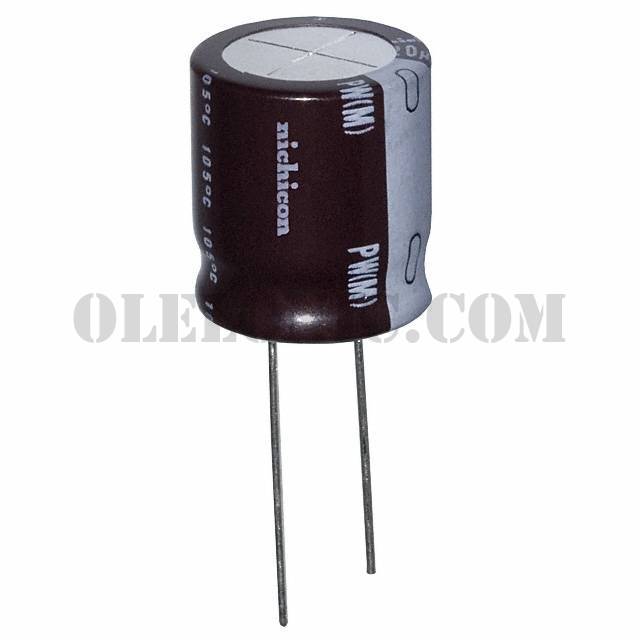

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPW Series
Standard Package	50
Manufacturer	Nichicon
Series	UPW
Packaging	Bulk
Part Status	Active
Capacitance	3900µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.117A @ 120Hz
Ripple Current @ High Frequency	2.49A @ 100kHz
Impedance	28 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
