Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPV Series
Standard Package	2000
Manufacturer	Nichicon
Series	UPV
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Impedance	2 Ohms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPV1H100MFD1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1V390MGD1TD	Nichicon, 39µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1H180MFD1TD	Nichicon, 18µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1C560MFD1TD	Nichicon, 56µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1H3R3MFD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1V680MGD1TD	Nichicon, 68µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1C121MGD1TD	Nichicon, 120µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1E390MFD	Nichicon, 39µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1A181MGD1TD	Nichicon, 180µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1HR68MFD1TD	Nichicon, 0.68µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1A331MGD1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View
UPV1A271MGD1TD	Nichicon, 270µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPV	View

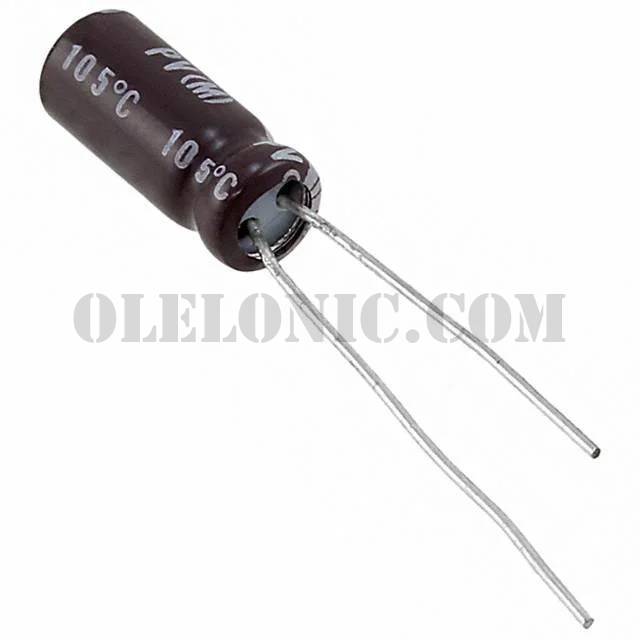

UPV1H100MFD1TD

Part NumberUPV1H100MFD1TD
