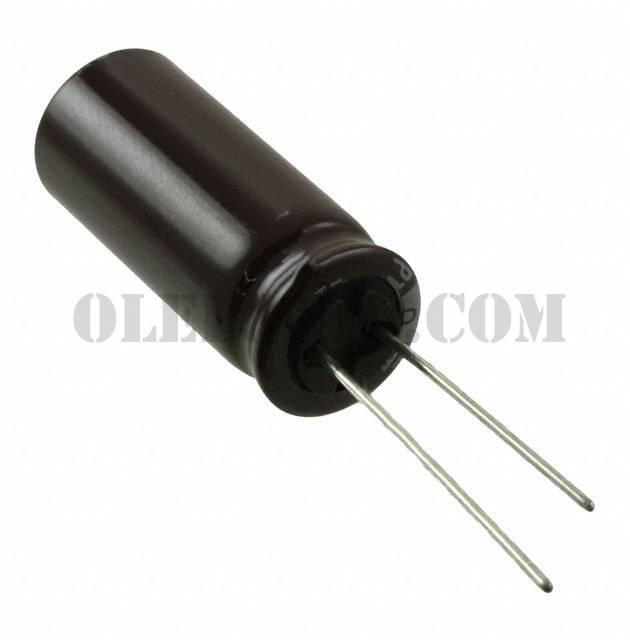

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPT Series
Standard Package	100
Manufacturer	Nichicon
Series	UPT
Packaging	Bulk
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	290mA @ 120Hz
Ripple Current @ High Frequency	464mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPT2G220MPD	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2G270MHD1TO	Nichicon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D471MRD	Nichicon, 470µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D181MHD	Nichicon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPTW6271MRD	Nichicon, 270µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D820MHD1TO	Nichicon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D221MHD6	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W470MHD	Nichicon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2W151MRD6	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2E151MHD	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPT2D101MHD	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View
UPTW6151MRD	Nichicon, 150µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPT	View

UPT2G330MHD

Part NumberUPT2G330MHD
