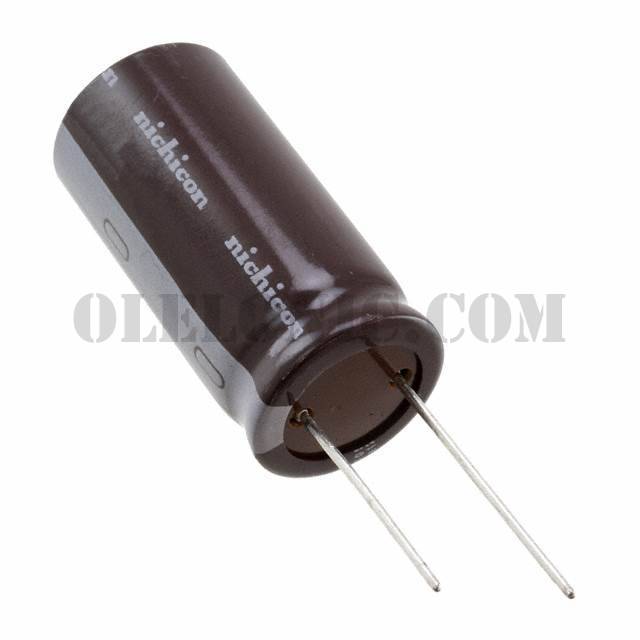

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPS
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	290mA @ 120Hz
Ripple Current @ High Frequency	464mA @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPS2CR47MED1TD	Nichicon, 0.47µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2A100MED	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J471MPD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2VR47MPD1TD	Nichicon, 0.47µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2VR47MPD	Nichicon, 0.47µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1J151MPD1TD	Nichicon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J332MHD1TO	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2G4R7MPD	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1E100MDD1TD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2FR47MPD1TD	Nichicon, 0.47µF 315V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2V2R2MPD1TD	Nichicon, 2.2µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View

UPS2V101MRD

Part NumberUPS2V101MRD
