Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	UPS
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	36mA @ 120Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPS1C681MPD	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1E220MDD1TD	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1J151MPD1TD	Nichicon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS0J681MPD1TD	Nichicon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1E470MDD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1C221MPD1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2F221MRD	Nichicon, 220µF 315V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2C3R3MPD1TD	Nichicon, 3.3µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1A472MHD1TN	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPS	View
UPS2ER47MED1TD	Nichicon, 0.47µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS2A2R2MDD1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View
UPS1A152MPD1TD	Nichicon, 1500µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPS	View

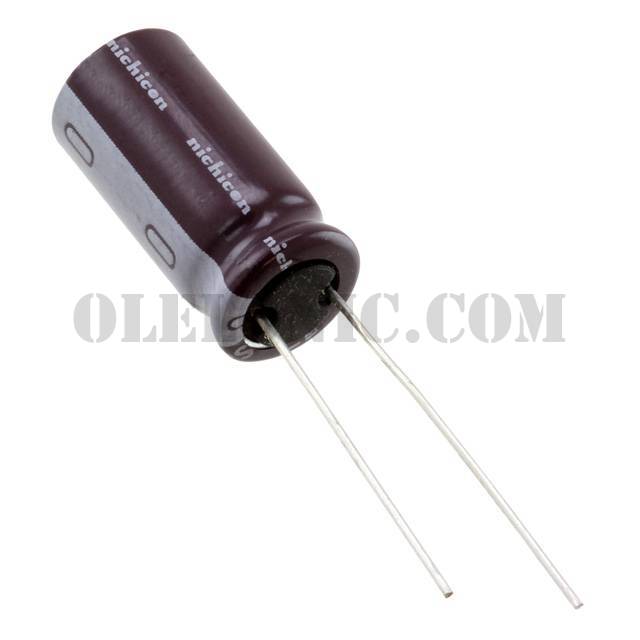

UPS2G3R3MPD1TD

Part NumberUPS2G3R3MPD1TD
