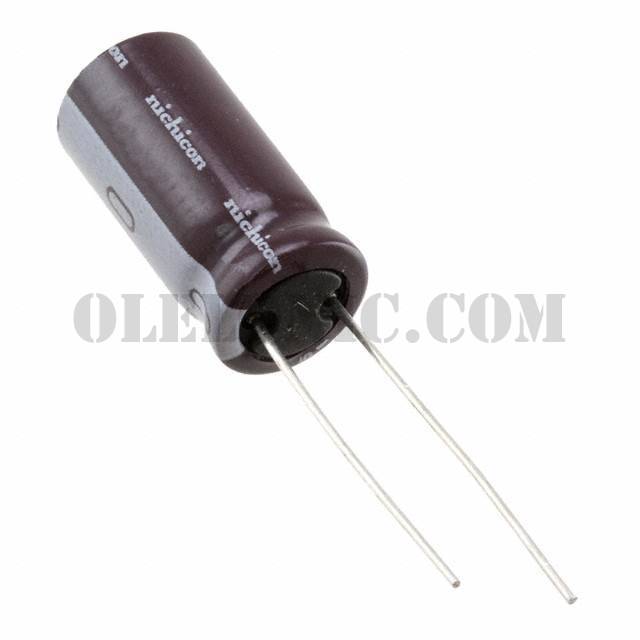

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPS Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UPS
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	315V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	72mA @ 120Hz
Ripple Current @ High Frequency	115.2mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
