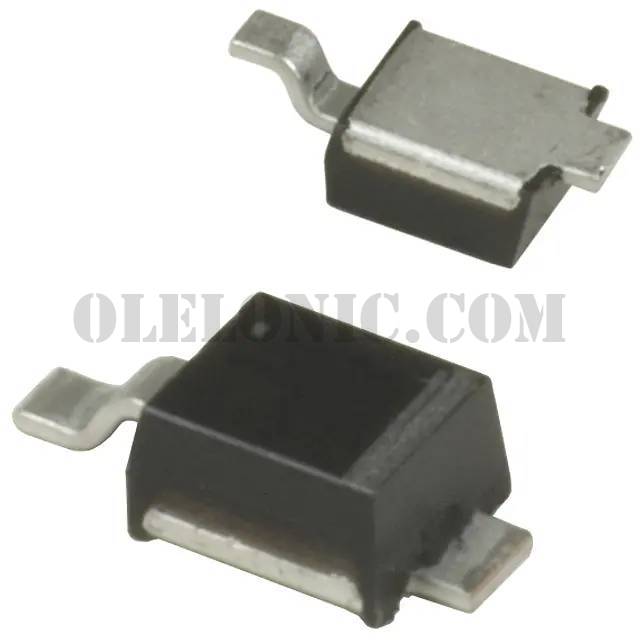

UPR15E3/TR7

UPR15E3/TR7

Part NumberUPR15E3/TR7

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 150V 2.5A DO216

DatasheetUPR(5,10,15)e3

Package / CaseDO-216AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 150V 2.5A Surface Mount DO-216

To learn about the specification of UPR15E3/TR7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UPR15E3/TR7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UPR15E3/TR7.
We are offering UPR15E3/TR7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UPR15E3/TR7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	UPR(5,10,15)e3
Standard Package	3000
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	2.5A
Voltage - Forward (Vf) (Max) @ If	975mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage @ Vr	2µA @ 150V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	DO-216AA
Supplier Device Package	DO-216
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	UPR15
