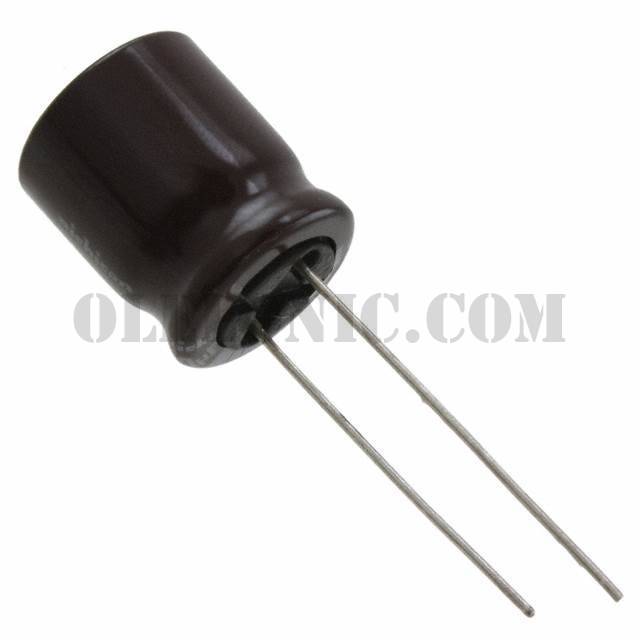

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UPM
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	510mA @ 120Hz
Ripple Current @ High Frequency	750mA @ 10kHz
Impedance	120 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.669" (17.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM1E681MHD6TN	Nichicon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1A680MDD1TD	Nichicon, 68µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM2A6R8MED1TD	Nichicon, 6.8µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1E221MPD6TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1C221MPD1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM2C4R7MPD1TD	Nichicon, 4.7µF 160V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1K330MPD1TD	Nichicon, 33µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPM	View
UPM2W4R7MHD1TO	Nichicon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM0J221MED1TD	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM0J222MPD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1V821MHD1TO	Nichicon, 820µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

UPM1J121MHD6TO

Part NumberUPM1J121MHD6TO
