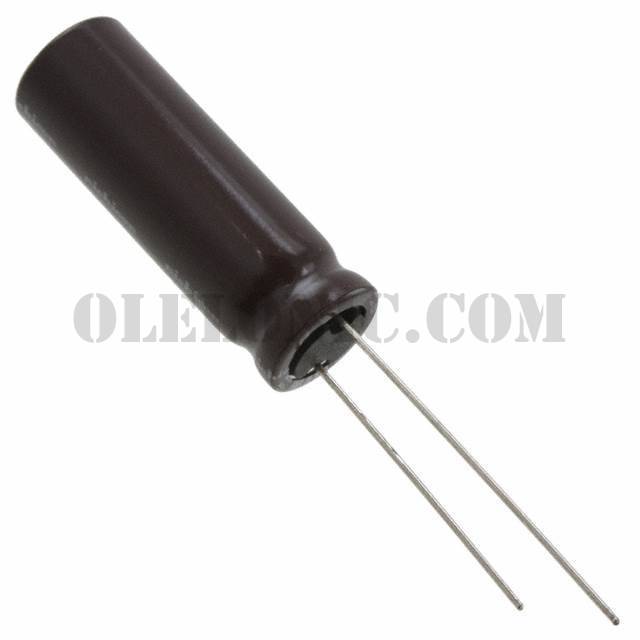

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.18A @ 120Hz
Ripple Current @ High Frequency	1.42A @ 10kHz
Impedance	46 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
