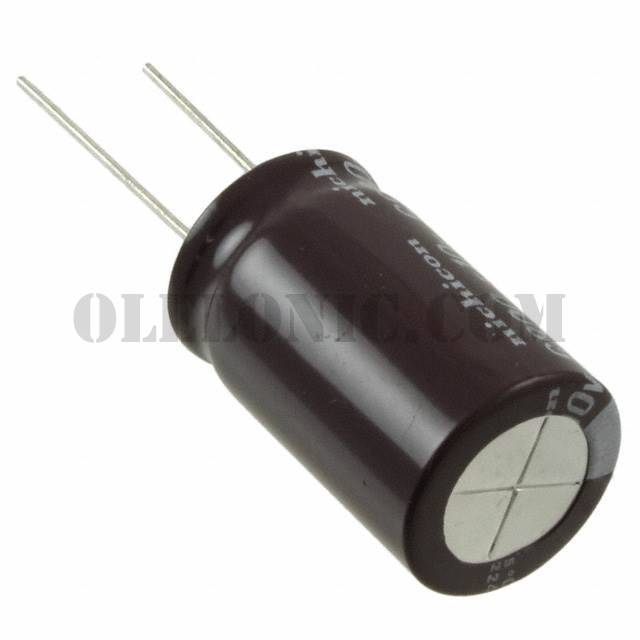

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPM Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UPM
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.44A @ 120Hz
Ripple Current @ High Frequency	2.72A @ 10kHz
Impedance	22 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPM1V330MED1TD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1H100MDD1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM0J102MHD6TO	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM2E3R3MPD1TD	Nichicon, 3.3µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1H151MHD6TO	Nichicon, 150µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1K4R7MDD1TD	Nichicon, 4.7µF 80V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPM	View
UPM2D4R7MPD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1H221MHD6TO	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1C821MPD1TD	Nichicon, 820µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1E102MHD1TO	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View
UPM1A122MPD1TD	Nichicon, 1200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPM	View

UPM1A682MHD6

Part NumberUPM1A682MHD6
