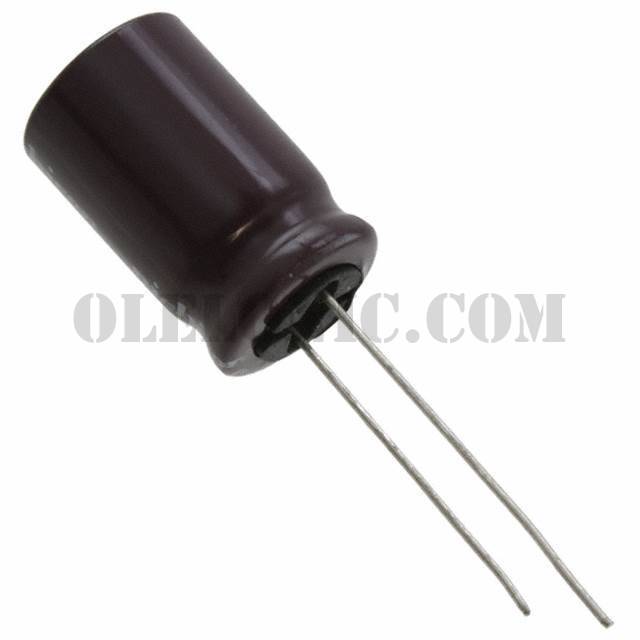

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	1
Manufacturer	Nichicon
Series	UPJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	48mA @ 120Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPJ1C272MHD6TN	Nichicon, 2700µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ2A6R8MED1TD	Nichicon, 6.8µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1V271MPD1TD	Nichicon, 270µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A120MED1TD	Nichicon, 12µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ2C330MHD1TO	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A101MHD6	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2W100MHD1TN	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1V121MPD6TD	Nichicon, 120µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ1K4R7MDD1TD	Nichicon, 4.7µF 80V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1V680MED1TD	Nichicon, 68µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1A392MHD6TN	Nichicon, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View

UPJ2W3R3MHD1TO

Part NumberUPJ2W3R3MHD1TO
