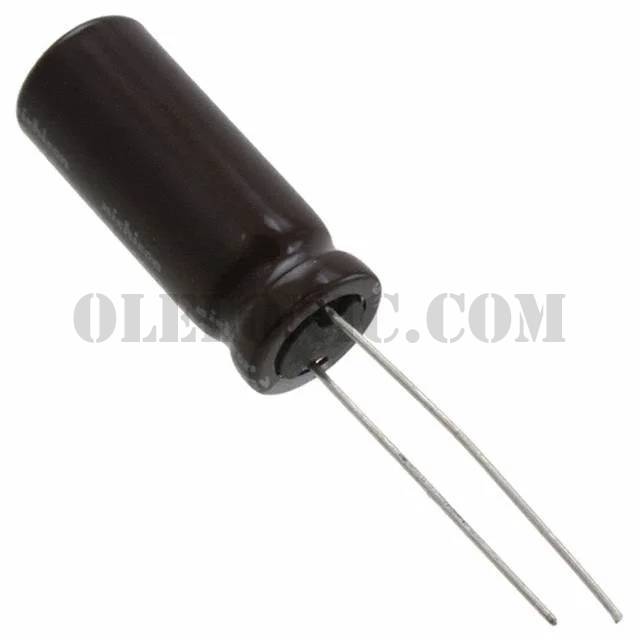

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	1
Manufacturer	Nichicon
Series	UPJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	326mA @ 120Hz
Impedance	210 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPJ2A101MHD6TN	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1H391MHD1TO	Nichicon, 390µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A3R3MDD1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ0J102MHD6TO	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A680MHD6TO	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1J151MPD1TD	Nichicon, 150µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1E151MPD1TD	Nichicon, 150µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ1V681MHD1TO	Nichicon, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1H390MED1TD	Nichicon, 39µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1J390MED1TD	Nichicon, 39µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ2A680MPD1TD	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2E2R2MPD1TD	Nichicon, 2.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View

UPJ2A680MPD1TD

Part NumberUPJ2A680MPD1TD
