Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	50
Manufacturer	Nichicon
Series	UPJ
Packaging	Bulk
Part Status	Active

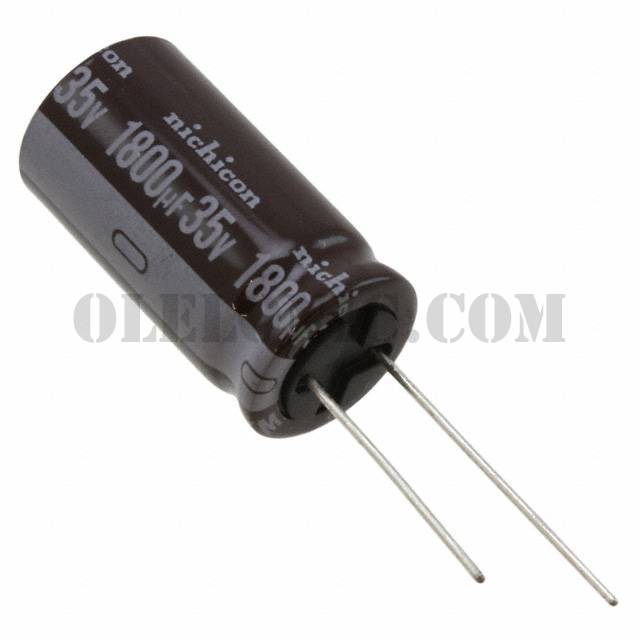

Capacitance	1800µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.22A @ 120Hz
Ripple Current @ High Frequency	2.47A @ 10kHz
Impedance	27 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPJ1J331MHD6TN	Nichicon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A220MPD1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ1J102MHD6	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1C152MHD6TN	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1V122MHD6TN	Nichicon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A151MHD6TN	Nichicon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1A222MHD1TO	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2F010MPD1TD	Nichicon, 1µF 315V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ1H560MED1TD	Nichicon, 56µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1V151MPD1TD	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ2V2R2MPD1TD	Nichicon, 2.2µF 350V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1E102MHD1TO	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View

UPJ1V182MHD

Part NumberUPJ1V182MHD
